AN32180A

4 x 4 Dots Matrix LED Driver LSI

AN32180A Features

* 4  4 LED Matrix Driver (Total LED that can be driven = 16)

* LED Selectable Maximum Current

* LED Music Synchronizing Function

* I2C interface (Standard Mode, Fast Mode and Fast Mode Plus) (4 Slave address selectable)

* 16 pin Plastic Quad Flat Non-leaded Package (QFN Type) D

AN32180A General Description

AN32180A is a 16 Dots Matrix LED Driver. It can drive up to 4 channels of RGB LEDs. APPLICATIONS
* Mobile Phone
* Smart Phone
* PCs
* Game Consoles
* Home Appliances etc. TYPICAL APPLICATION Battery VCC CPU I/F CLKIO SLAVSEL SCL SDA NRST Z1 Z2 Z3 Z4 Z5 GND1 GND2 IREF 39 k .

AN32180A Datasheet (729.48 KB)

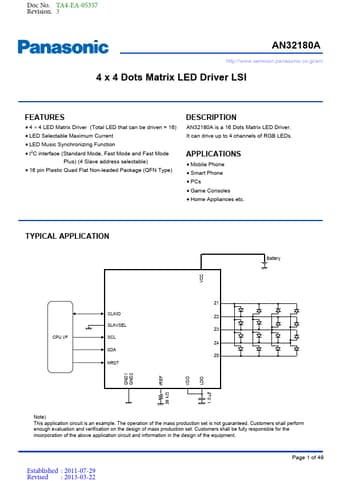

Preview of AN32180A PDF

Datasheet Details

Part number:

AN32180A

Manufacturer:

Panasonic

File Size:

729.48 KB

Description:

4 x 4 dots matrix led driver lsi.
