AN32182A - 6 x 6 Dots Matrix LED Driver

AN32182A Description

DReovcisNioon..T3A4-EA-05358 Product Standards AN32182A http://www.semicon.panasonic.co.jp/en/ 6 x 6 Dots Matrix LED Driver IC .
AN32182A is a 36 dots Matrix LED driver. Mobile Phone. Smart Phone. PCs. Game Consol.

AN32182A Features

* 6  6 LED Matrix Driver (Total LED that can be driven = 36)
* LED Selectable Maximum Current
* LED Music Synchronizing function
* I2C interface (Standard Mode, Fast Mode and Fast Mode Plus) (4 Slave address selectable)
* 20 pin Plastic Quad Flat Non-leaded Package (QFN Type) D

AN32182A Applications

* Mobile Phone
* Smart Phone
* PCs
* Game Consoles
* Home Appliances etc. TYPICAL APPLICATION CLK OUTPUT /MUSIC INPUT (15) CLKIO (14) VCC (13) LDO 1 µF (12) Z1 (11) PGND1 Clock Output VDD (16) Music Synchronize Function Voltage regulators SLAVSEL (17) Processor I2C SCL

📥 Download Datasheet

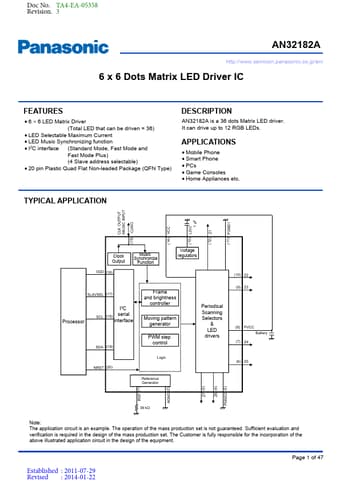

Preview of AN32182A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AN32182A
Manufacturer
Panasonic
File Size
771.38 KB
Datasheet
AN32182A-Panasonic.pdf
Description
6 x 6 Dots Matrix LED Driver
