AQZ102 - PhotoMOS RELAY

Panasonic

📥 Download Datasheet

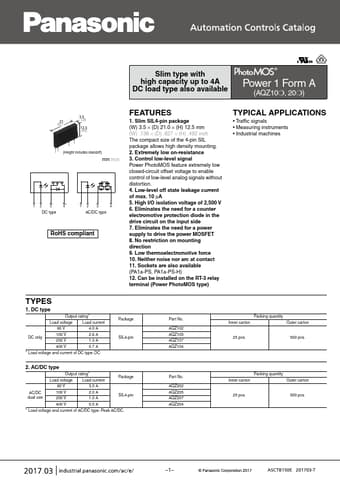

AQZ102 Datasheet Preview — Preview of AQZ102 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AQZ102
Manufacturer	Panasonic
File Size	229.81 KB
Description	PhotoMOS RELAY
Datasheet	AQZ102-Panasonic.pdf

AQZ102 Product details

Features

1. Slim SIL4-pin package (W) 3.5 × (D) 21.0 × (H) 12.5 mm (W) .138 × (D) .827 × (H) .492 inch The compact size of the 4-pin SIL package allows high density mounting. 2. Extremely low on-resistance 3. Control low-level signal Power PhotoMOS feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion. 4. Low-level off state leakage current of max. 10 μA 5. High I/O isolation voltage of 2,500 V 6. Eliminates the need for a counter electromoti.
