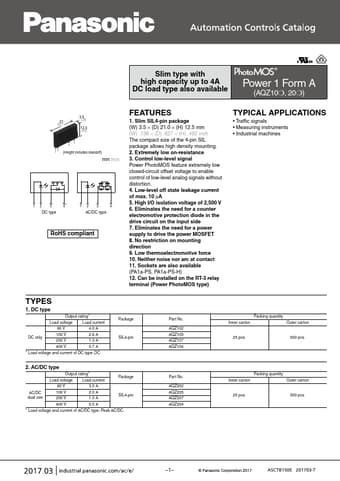

* 1. Slim SIL4-pin package (W) 3.5 × (D) 21.0 × (H) 12.5 mm (W) .138 × (D) .827 × (H) .492 inch The compact size of the 4-pin SIL package allows high density mounting. 2. Extremely low on-resistance 3. Control low-level signal Power PhotoMOS feature extremely low closed-circuit offset voltage to enabl
AQZ107
Panasonic
229.81 KB
Photomos relay.
Slim type with high capacity up to 4A DC load type also available Power 1 Form A (AQZ10❍, 20❍) 21 .827 3.5 .138 12.5 .492 (Height includes standof.
