AQZ102D - PhotoMOS RELAY

Panasonic

📥 Download Datasheet

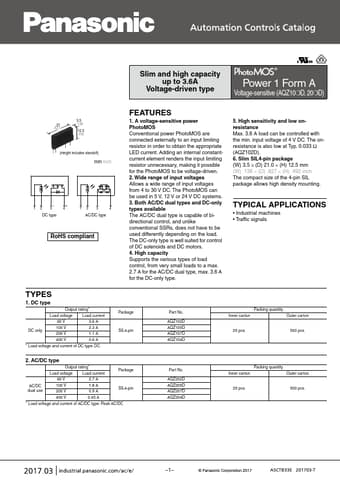

AQZ102D Datasheet Preview — Preview of AQZ102D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AQZ102D
Manufacturer	Panasonic
File Size	203.94 KB
Description	PhotoMOS RELAY
Datasheet	AQZ102D-Panasonic.pdf

AQZ102D Product details

Features

1. A voltage-sensitive power PhotoMOS Conventional power PhotoMOS are connected externally to an input limiting resistor in order to obtain the appropriate LED current. Adding an internal constantcurrent element renders the input limiting resistor unnecessary, making it possible for the PhotoMOS to be voltage-driven. 2. Wide range of input voltages Allows a wide range of input voltages from 4 to 30 V DC. The PhotoMOS can be used in 5 V, 12 V or 24 V DC systems. 3. Both AC/DC dual types and DC-on.
