AQZ104, AQZ102, PhotoMOS RELAY

Slim type with high capacity up to 4A DC load type also available Power 1 Form A (AQZ10❍, 20❍) 21 .827 3.5 .138 12.5 .492 (Height includes standof.

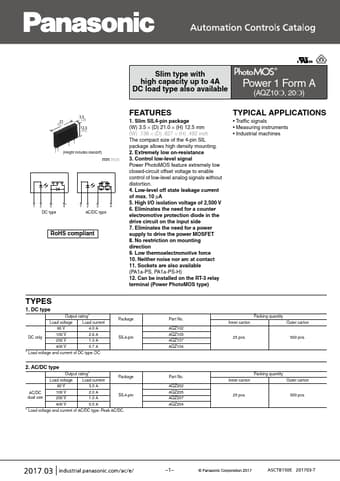

datasheet Preview Page 1 from Datasheet4u.com

AQZ102-Panasonic.pdf

AQZ104 Datasheet Preview — This datasheet PDF includes multiple part numbers: AQZ104, AQZ102. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AQZ104, AQZ102

Manufacturer:

Panasonic

File Size:

229.81 KB

Description:

PhotoMOS RELAY

Note:

This datasheet PDF includes multiple part numbers: AQZ104, AQZ102.
Please refer to the document for exact specifications by model.

Features

* 1. Slim SIL4-pin package (W) 3.5 × (D) 21.0 × (H) 12.5 mm (W) .138 × (D) .827 × (H) .492 inch The compact size of the 4-pin SIL package allows high density mounting. 2. Extremely low on-resistance 3. Control low-level signal Power PhotoMOS feature extremely low closed-circuit offset voltage to enabl
