ECJZEC1E0R5C - Multilayer Ceramic Capacitors

ECJZEC1E0R5C Description

Multilayer Ceramic Capacitors(For General Usage) Multilayer Ceramic Capacitors (For General Electronic Equipment) Series: ECJ * .

ECJZEC1E0R5C Features

* Small size and wide capacitance range High humidity resistance and long life Excellent solderability and resistance to soldering heat Low inductance (ESL) and excellent frequency characteristics
* RoHS compliant

ECJZEC1E0R5C Applications

* Class 1 (T. C. Type) Tuned circuits, and filter circuitry, where low loss and high stability of capacitance and high insulation resistance is required
* Class 2 (Hi-K Type) Coupling and By-passing
* Handling Precautions See Page 48 to 53
* Packaging Specifications See Page 45, 46, 5

📥 Download Datasheet

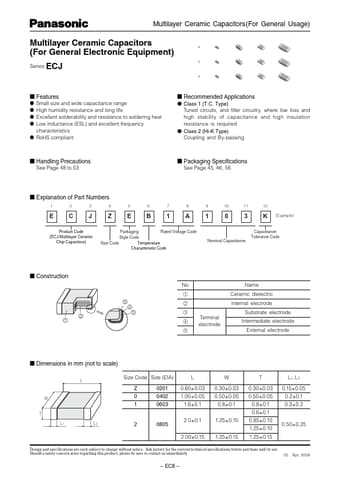

Preview of ECJZEC1E0R5C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ECJZEC1E0R5C
Manufacturer
Panasonic
File Size
252.99 KB
Datasheet
ECJZEC1E0R5C-Panasonic.pdf
Description
Multilayer Ceramic Capacitors
