EXBQ10xxxxJ, EXBD10C680J - (EXBD / EXBE / EXBA / EXBQ) Chip Resistor Networks

Panasonic

📥 Download Datasheet

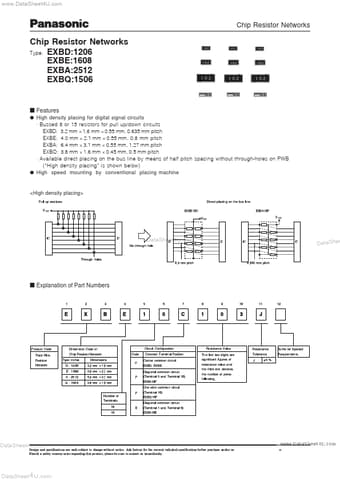

EXBQ10xxxxJ Datasheet Preview — This datasheet PDF includes multiple part numbers: EXBQ10xxxxJ, EXBD10C680J. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EXBQ10xxxxJ, EXBD10C680J
Manufacturer	Panasonic
File Size	762.34 KB
Description	(EXBD / EXBE / EXBA / EXBQ) Chip Resistor Networks
Datasheet	EXBD10C680J_Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: EXBQ10xxxxJ, EXBD10C680J. Please refer to the document for exact specifications by model.

EXBQ10xxxxJ Product details

Features

l High density placing for digital signal circuits á Bussed 8 or 15 resistors for pull up/down circuits EXBD: 3.2 mm ´ 1.6 mm ´ 0.55 mm, 0.635 mm pitch EXBE: 4.0 mm ´ 2.1 mm ´ 0.55 mm, 0.8 mm pitch EXBA: 6.4 mm ´ 3.1 mm ´ 0.55 mm, 1.27 mm pitch EXBQ: 3.8 mm ´ 1.6 mm ´ 0.45 mm, 0.5 mm pitch á Available direct placing on the bus line by means of half pitch spacing without through-holes on PWB (ÒHigh density placingÓ is shown below) l High speed mounting by conventional placing machine.
