LC-X1265PG Datasheet - Panasonic

LC-X1265PG Storage Battery

Individual Data Sheets LC-X1265PG For standby power supplies. Expected trickle design life: 10 12 years at 20 °C according to Eurobat. VdS G199090 Dimensions (mm) 18 18 18 18 M6 18 M6 Terminal type M6 Contents indicated (including the recycle marking, etc.) are subject to change without notice. Battery case resin: standard (UL94HB) Specifications Nominal voltage Nominal capacity (20 hour rate) Length Dimensions Width Height Total Height Approx. mass Terminal 12 V 65 Ah 350 mm .

LC-X1265PG-Panasonic.pdf

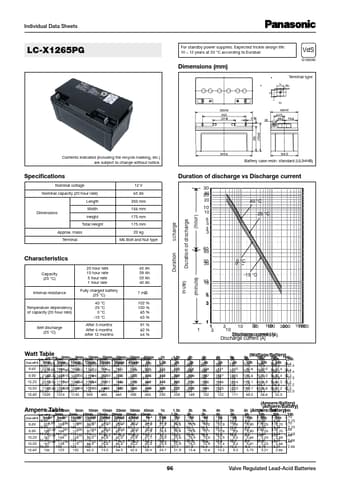

Preview of LC-X1265PG PDF
LC-X1265PG Datasheet Preview Page 2

Datasheet Details

Part number:

LC-X1265PG

Manufacturer:

Panasonic

File Size:

416.00 KB

Description:

Storage battery.
