This product complies with the RoHS Directive (EU 2002/95/EC).

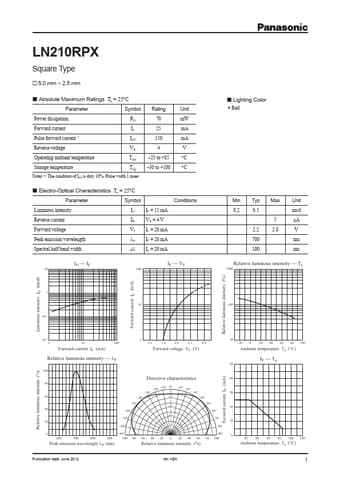

LN210RPX
Square Type
5.0 mm × 2.5 mm
Absolute Maximum Ratings Ta = 25°C
Parameter
Symbol
Rating
Power dissipation
PD
Forward current
IF
Pulse forward current *
IFP
Reverse voltage
VR
Operating ambient temperature
Topr
Storage temperature
Tstg
Note) *: The condition of IFP is duty 10%, Pulse width 1 msec.
70 25 150 4 –25 to +85 –30 to +100
Unit mW mA mA V °C °C
Electro-Optical Characteristics Ta = 25°C
Parameter
Symbol
Conditions
Luminous intensity Reverse current Forward voltage Peak emission wavelength Spectral half band width
IO IF = 15 mA IR VR = 4 V VF IF = 20 mA λP IF = 20 mA Δλ IF = 20 mA
IO IF
10
IF VF
100
Lighting Color Red
Min Typ Max Unit
0.2 0.5
mcd
5 µA
2.2 2.
