LN2112 Datasheet, Driver, natlinear

LN2112 Features

• Driver
• Input voltage range : 6.8V
    –20V
• Output voltage range : up to 20V
• Oscillation frequency : 1.4MHz±20%
• Efficiency : 95%
<

PDF File Details

Part number:

LN2112

Manufacturer:

natlinear

File Size:

393.92kb

Download:

📄 Datasheet

Description:

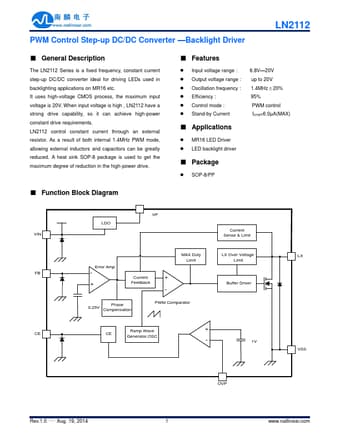

Pwm control step-up dc/dc converter - backlight driver. The LN2112 Series is a fixed frequency, constant current step-up DC/DC converter ideal for driving LEDs used in backlighting applicat

LN2112 Application

• Applications on MR16 etc. It uses high-voltage CMOS process, the maximum input voltage is 20V. When input voltage is high , LN2112 have a strong dri
