LN2117 Datasheet, Driver, natlinear

LN2117 Features

  • Driver
  • Input voltage range 2.5V
      –6V
  • Output voltage range up to 20V
  • Oscillation frequency 1MHz±20%
  • Efficiency 88%(When driving 3

PDF File Details

Part number:

LN2117

Manufacturer:

natlinear

File Size:

316.11kb

Download:

📄 Datasheet

Description:

Step-up dc/dc converter - backlight driver. The LN2117 Series is a fixed frequency, constant current step-up DC/DC converter ideal for driving LEDs used in backlighting applica

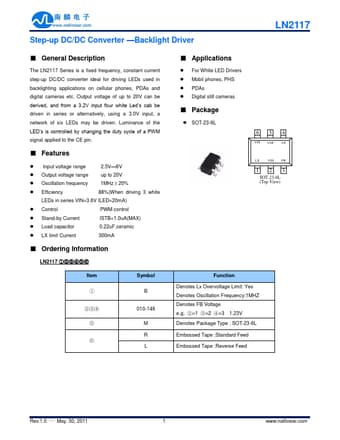

Datasheet Preview: LN2117 📥 Download PDF (316.11kb)
Page 2 of LN2117 Page 3 of LN2117

LN2117 Application

  • Applications on cellular phones, PDAs and digital cameras etc. Output voltage of up to 20V can be derived, and from a 3.2V input four white Led’s ca
