LN2115 - Step-up DC/DC Converter - Backlight Driver

LN2115 Description

LN2115 Step-up DC/DC Converter *Backlight Driver * General .
The LN2115 Series is a fixed frequency, constant current step-up DC/DC converter ideal for driving LEDs used in backlighting applications on cellular.

LN2115 Features

* Input voltage range 2.5V
* 6V
* Output voltage range up to 28V
* Oscillation frequency 1.5MHz±20%
* Efficiency 88%(When driving 3 white LEDs in series VIN=3.6V ILED=20mA)
* Control PWM control
* Stand-by Current ISTB=1.0uA(MAX)
* Load cap

LN2115 Applications

* on cellular phones, PDAs and digital cameras etc. Output voltage of up to 28V can be derived, and from a 3.2V input four white Led’s cab be driven in series or alternatively, using a 3.0V input, a network of six LEDs may be driven. Luminance of the LED’s is controlled by changing the duty cycle of a

📥 Download Datasheet

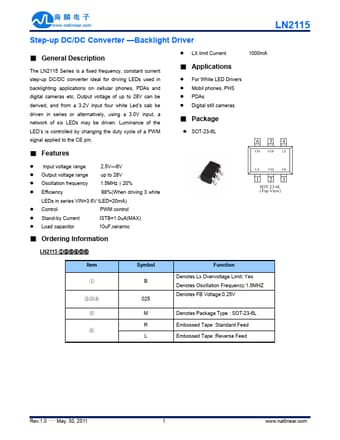

Preview of LN2115 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LN2115
Manufacturer
natlinear
File Size
871.93 KB
Datasheet
LN2115-natlinear.pdf
Description
Step-up DC/DC Converter - Backlight Driver
