PE4246

Absorptive SPST UltraCMOS RF Switch

PE4246 Features

* Non-reflective 50-ohm RF switch

* 50-ohm (0.25 watt) terminations

* High isolation: 55 dB at 1000 MHz, 48 dB at 3000 MHz

* Low insertion loss: 0.8 dB at 1000 MHz, 0.9 dB at 3000 MHz

* High linearity: +33 dBm input 1dB compression point

* CMOS/TTL sin

PE4246 General Description

The PE4246 RF Switch is designed to cover a broad range of applications from DC to 5000 MHz. It is non-reflective at both RF1 and RF2 ports. This SPST switch integrates a single-pin CMOS control interface, and provides low insertion loss while operating with extremely low bias from a single +3-volt .

PE4246 Datasheet (683.47 KB)

Preview of PE4246 PDF

Datasheet Details

Part number:

PE4246

Manufacturer:

Peregrine Semiconductor

File Size:

683.47 KB

Description:

Absorptive spst ultracmos rf switch.

šŸ“ Related Datasheet

PE4240 - SPST UltraCMOS CATV Switch DC (Peregrine Semiconductor)
.. Product Specification PE4240 Product Description The PE4240 is a high-isolation MOSFET Switch designed for CATV applications, co.

PE4241 - SPDT UltraCMOS RF Switch (Peregrine Semiconductor)
.. Product Specification PE4241 SPDT UltraCMOSā„¢ RF Switch Product Description The PE4241 UltraCMOSā„¢ RF Switch is designed to cover.

PE42412 - SP12T RF Switch (Peregrine Semiconductor)
PE42412 Document Category: Product Specification UltraCMOSĀ® SP12T RF Switch, 10 MHzā€“8 GHz Features ā€¢ High isolation: 39 dB @ 6 GHz ā€¢ Low insertion lo.

PE4242 - SPDT UltraCMOS RF Switch (Peregrine Semiconductor)
.. Product Specification PE4242 SPDT UltraCMOSā„¢ RF Switch Product Description The PE4242 UltraCMOSā„¢ RF Switch is designed to cover.

PE42420 - UltraCMOS SPDT RF Switch (Peregrine Semiconductor)
Product Description The PE42420 is a HaRPā„¢ technology-enhanced absorptive SPDT RF switch designed for use in 3G/4G wireless infrastructure and other h.

PE42421 - RF Switch (Peregrine Semiconductor)
Product Description The PE42421 UltraCMOSĀ® RF switch is designed to cover a broad range of applications from 10 MHz through 3000 MHz. This reflective .

PE42422 - SPDT RF Switch (Peregrine Semiconductor)
Product Description The PE42422 is a HaRPā„¢ technology-enhanced SPDT RF switch designed to cover a broad range of applications from 5ā€“6000 MHz. This re.

PE42423 - SPDT RF Switch (Peregrine Semiconductor)
Product Descripʟon The PE42423 is a HaRPā„¢ technology-enhanced absorp ve 50ā„¦ SPDT RF switch designed for use in high power and high performance WLAN 80.

TAGS

PE4246 Absorptive SPST UltraCMOS Switch Peregrine Semiconductor

Image Gallery

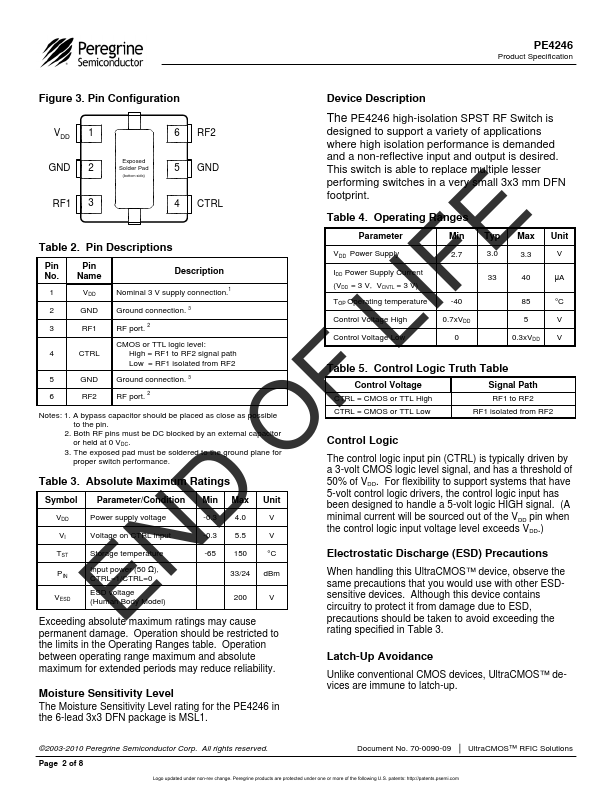

PE4246 Datasheet Preview Page 2 PE4246 Datasheet Preview Page 3
