PE4013SA Datasheet, Mosfet, ChipSourceTek

PE4013SA Features

  • Mosfet
  • VDS = 40V, ID = 13A RDS(ON) < 10mΩ @ VGS=10V RDS(ON) < 13mΩ @ VGS=4.5V Schematic diagram
  • High Power and current handing capability
  • Lead free product is

PDF File Details

Part number:

PE4013SA

Manufacturer:

ChipSourceTek

File Size:

1.07MB

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The PE4013SA uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of ap

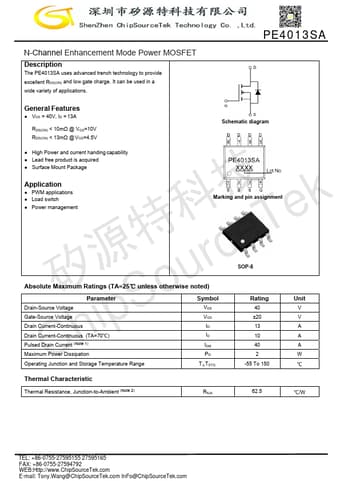

Datasheet Preview: PE4013SA 📥 Download PDF (1.07MB)
Page 2 of PE4013SA Page 3 of PE4013SA

PE4013SA Application

  • Applications PE4013SA General Features
  • VDS = 40V, ID = 13A RDS(ON) < 10mΩ @ VGS=10V RDS(ON) < 13mΩ @ VGS=4.5V Schematic diagram
