PE4025KC, PE4025KC-ChipSourceTek N and P Channel Enhancement Mode Power MOSFET

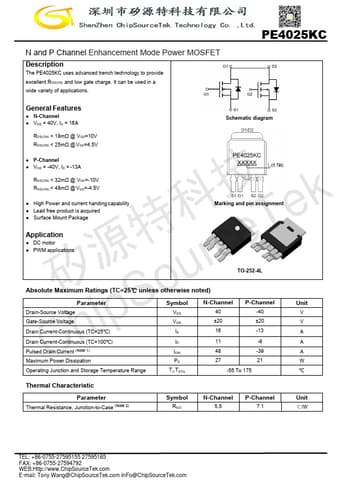

📥 Download Datasheet  Datasheet Preview Page 1

Description

N and P Channel Enhancement Mode Power MOSFET .
The PE4025KC uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PE4025KC, PE4025KC-ChipSourceTek. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PE4025KC, PE4025KC-ChipSourceTek
Manufacturer
ChipSourceTek
File Size
1.65 MB
Datasheet
PE4025KC-ChipSourceTek_removed.pdf
Description
N and P Channel Enhancement Mode Power MOSFET
Note
This datasheet PDF includes multiple part numbers: PE4025KC, PE4025KC-ChipSourceTek.
Please refer to the document for exact specifications by model.

Features

* N-Channel
* VDS = 40V, ID = 16A RDS(ON) < 18mΩ @ VGS=10V RDS(ON) < 25mΩ @ VGS=4.5V Schematic diagram
* P-Channel
* VDS = -40V, ID = -13A RDS(ON) < 32mΩ @ VGS=-10V RDS(ON) < 48mΩ @ VGS=-4.5V k
* High Power and current handingcapability
* Lead free product is acquired e
