PE40P5 Datasheet, Mosfet, semi one

PE40P5 Features

  • Mosfet
  • VDS = -40V,ID = -5.3A RDS(ON) < 126mΩ @ VGS=-4.5V RDS(ON) < 85mΩ @ VGS=-10V D G S Schematic diagram
  • High power and current handing capability
  • Lead free p

PDF File Details

Part number:

PE40P5

Manufacturer:

semi one

File Size:

101.27kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The PE40P5 uses advanced trench technology to provide excellent RDS(ON), This device is suitable for use as a load switch and battery

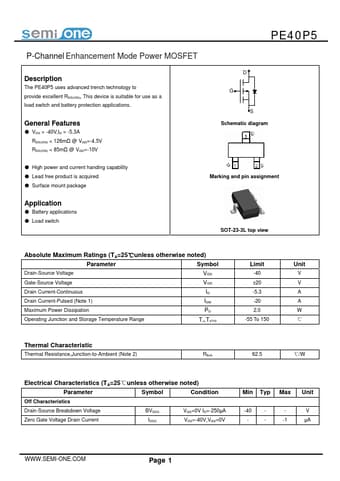

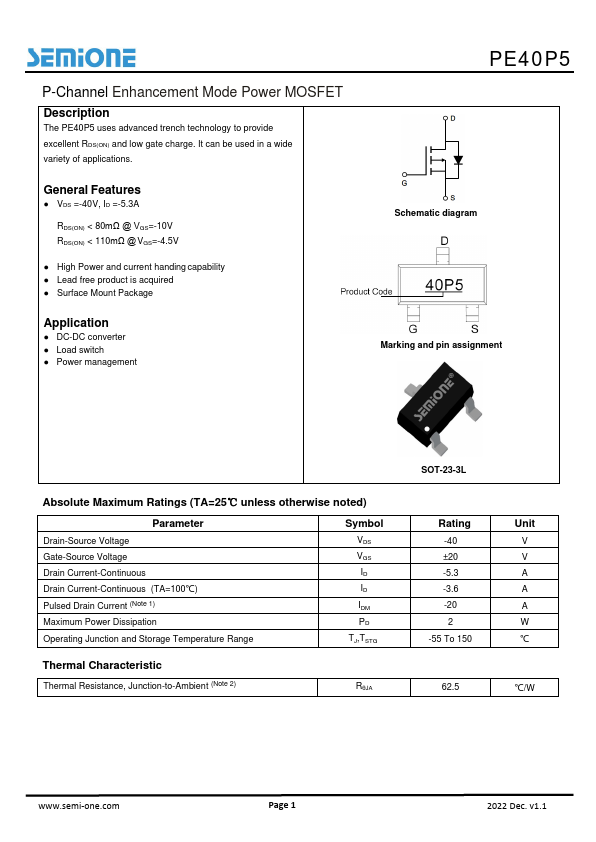

Datasheet Preview: PE40P5 📥 Download PDF (101.27kb)

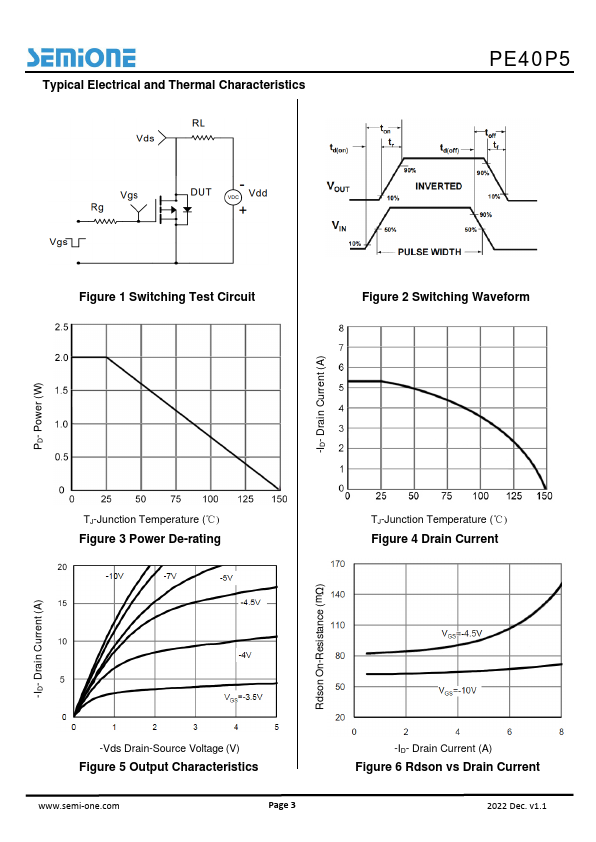

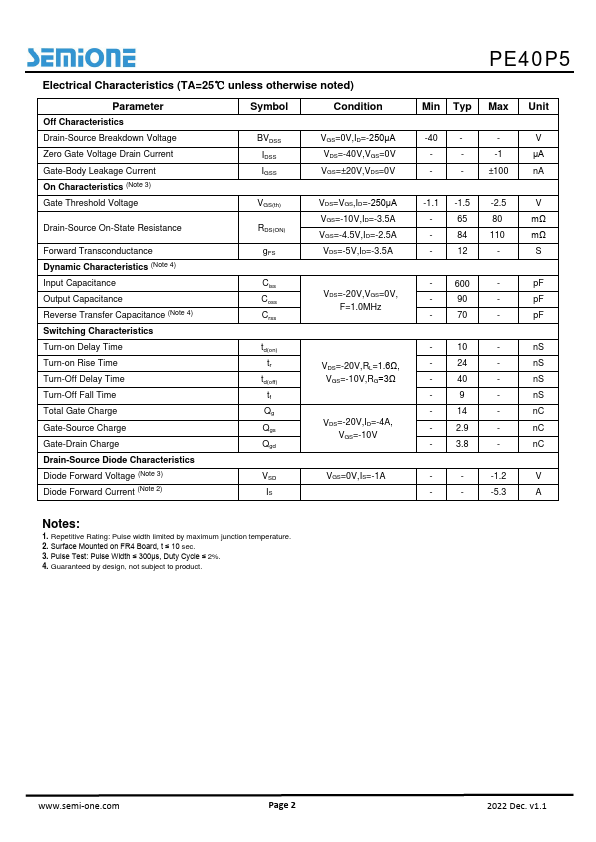

Page 2 of PE40P5 Page 3 of PE40P5

PE40P5 Application

  • Applications General Features
  • VDS = -40V,ID = -5.3A RDS(ON) < 126mΩ @ VGS=-4.5V RDS(ON) < 85mΩ @ VGS=-10V D G S Schematic diagram
