PE4419 - P-Channel Enhancement Mode Power MOSFET

Product Overview

semi one

📥 Download Datasheet

PE4419 P-Channel Enhancement Mode Power MOSFET by semi one - Datasheet Preview — Datasheet preview – PE4419

Datasheet Details

Part number	PE4419
Manufacturer	semi one
File Size	244.69 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE4419 Datasheet

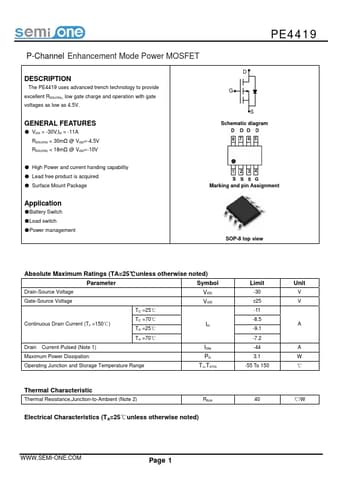

Additional preview pages of the PE4419 datasheet.

Product details

Description

The PE4419 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -11A RDS(ON) < 30mΩ @ VGS=-4.5V RDS(ON) < 18mΩ @ VGS=-10V D G S Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package Marking and pin Assignment.
