PE4435 - P-Channel Enhancement Mode Power MOSFET

Product Overview

semi one

📥 Download Datasheet

PE4435 P-Channel Enhancement Mode Power MOSFET by semi one - Datasheet Preview — Datasheet preview – PE4435

Datasheet Details

Part number	PE4435
Manufacturer	semi one
File Size	244.66 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE4435 Datasheet

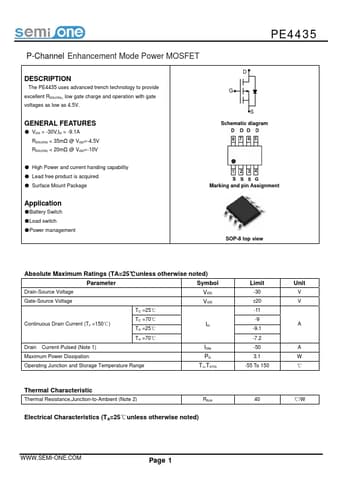

Additional preview pages of the PE4435 datasheet.

Product details

Description

The PE4435 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -9.1A RDS(ON) < 35mΩ @ VGS=-4.5V RDS(ON) < 20mΩ @ VGS=-10V D G S Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package Marking and pin Assignment.
