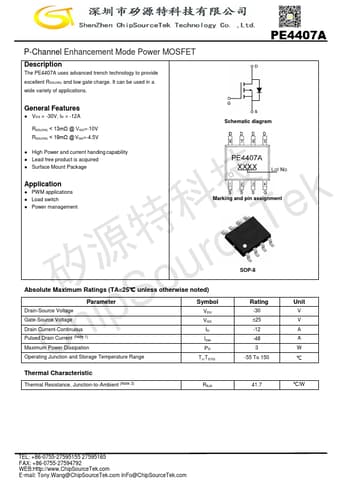

PE4407A Datasheet, Mosfet, ChipSourceTek

PE4407A Features

• Mosfet
• VDS = -30V, ID = -12A RDS(ON) < 13mΩ @ VGS=-10V RDS(ON) < 19mΩ @ VGS=-4.5V Schematic diagram
• High Power and current handing capability
• Lead free product

PDF File Details

Part number:

PE4407A

Manufacturer:

ChipSourceTek

File Size:

1.22MB

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The PE4407A uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of app

PE4407A Application

• Applications PE4407A General Features
• VDS = -30V, ID = -12A RDS(ON) < 13mΩ @ VGS=-10V RDS(ON) < 19mΩ @ VGS=-4.5V Schematic diagram
