PE4425 Datasheet, Mosfet, semi one

PE4425 Features

  • Mosfet
  • VDS =-40V,ID =-15A RDS(ON) <10mΩ @ VGS=-10V RDS(ON) <15mΩ @ VGS=-4.5V
  • High density cell design for ultra low Rdson
  • Fully characterized avalanche voltage an

PDF File Details

Part number:

PE4425

Manufacturer:

semi one

File Size:

659.52kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The PE4425 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide var

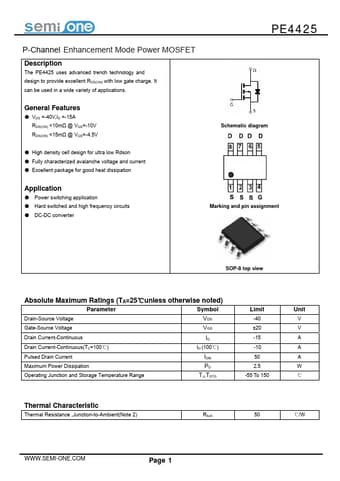

Datasheet Preview: PE4425 📥 Download PDF (659.52kb)
Page 2 of PE4425 Page 3 of PE4425

PE4425 Application

  • Applications General Features
  • VDS =-40V,ID =-15A RDS(ON) <10mΩ @ VGS=-10V RDS(ON) <15mΩ @ VGS=-4.5V
  • High density cell design f
