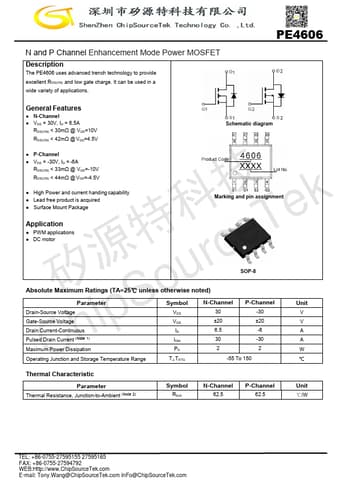

PE4606 Datasheet, Mosfet, ChipSourceTek

✔ PE4606 Features

N-Channel
VDS = 30V, ID = 6.5A RDS(ON) < 30mΩ @ VGS=10V RDS(ON) < 42mΩ @ VGS=4.5V Schematic diagram
P-Channel
VDS = -30V, ID = -6A RDS(ON) < 33mΩ @ VGS=-10V R

✔ PE4606 Application

PE4606 General Features
N-Channel
VDS = 30V, ID = 6.5A RDS(ON) < 30mΩ @ VGS=10V RDS(ON) < 42mΩ @ VGS=

PDF File Details

ChipSourceTek manufacturer logo

Part number:

PE4606

Manufacturer:

ChipSourceTek

File Size:

915.10 KB

Download:

📄 Datasheet

Description:

N and p channel enhancement mode power mosfet. The PE4606 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of appl

📥 Download PDF (915.10 KB)
