PE46120

Monolithic Phase & Amplitude Controller

Peregrine Semiconductor

PE46120 Features

* 90° phase splitter

* 5-bit digital phase shifter, 87.2° range, 2.8° resolution

* 4-bit digital step attenuator, 7.5 dB range, 0.5 dB resolution

* High power handling and linearity ▪ P0.1dB of +35 dBm ▪ Input IP3 of +60 dBm

* Packaging

* 32-lead 6 × 6

PE46120 General Description

The PE46120 is a HaRP™ technology-enhanced monolithic phase and amplitude controller (MPAC) designed for precise phase and amplitude control of two independent RF paths. It optimizes system performance while reducing manufacturing costs of transmitters that use symmetric or asymmetric power amplifie.

PE46120 Datasheet (916.97 KB)

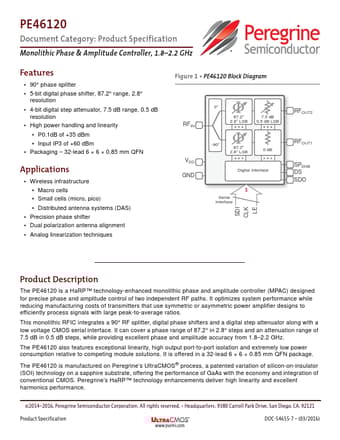

PE46120 Datasheet Preview — Preview of PE46120 PDF

Datasheet Details

Part number:

PE46120

Manufacturer:

Peregrine Semiconductor

File Size:

916.97 KB

Description:

Monolithic phase & amplitude controller.
