PE46140 - Monolithic Phase & Amplitude Controller

PE46140 Description

PE46140 Document Category: Product Specification Monolithic Phase & Amplitude Controller, 3.4 *3.8 GHz .
The PE46140 is a HaRP™ technology-enhanced monolithic phase and amplitude controller (MPAC) designed for precise phase and amplitude control of two in.

PE46140 Features

* 90° phase splitter
* 4-bit digital step attenuator, 7.5 dB range, 0.5 dB resolution
* 5-bit digital phase shifter, 87.2° range, 2.8° resolution
* High power handling and linearity ▪ P0.1dB of +35 dBm ▪ Input IP3 of +60 dBm
* 3-bit insertion loss stabilizer (

PE46140 Applications

* Wireless infrastructure ▪ Macro cells ▪ Small cells (micro, pico) ▪ Distributed antenna systems (DAS)
* Precision phase shifter
* Dual polarization antenna alignment
* Analog linearization techniques SDI CLK LE Figure 1
* PE46140 Functional Diagram RFIN V

📥 Download Datasheet

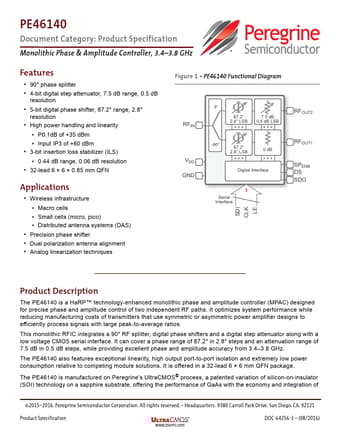

Preview of PE46140 PDF
