PE4435A Datasheet, Mosfet, ChipSourceTek

PE4435A Features

  • Mosfet
  • VDS -30V,ID = -10.5A RDS(ON) < 20mΩ @ VGS=-10V RDS(ON) < 35mΩ @ VGS=-4.5V S Schematic diagram
  • High Power and current handing capability
  • Lead free product

PDF File Details

Part number:

PE4435A

Manufacturer:

ChipSourceTek

File Size:

697.10kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The PE4435A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

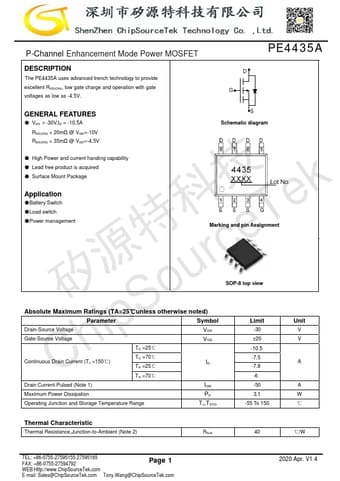

Datasheet Preview: PE4435A 📥 Download PDF (697.10kb)
Page 2 of PE4435A Page 3 of PE4435A
