PE42462 - SP6T RF Switch

Peregrine Semiconductor

📥 Download Datasheet

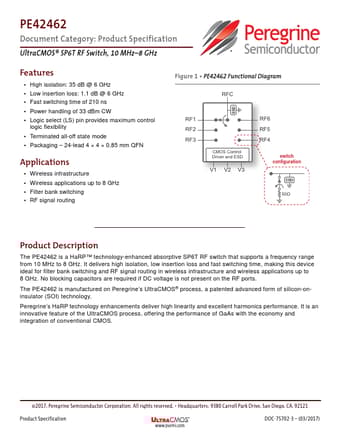

PE42462 Datasheet Preview — Preview of PE42462 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: PE42462
Manufacturer: Peregrine Semiconductor
File Size: 780.81 KB
Datasheet: PE42462-PeregrineSemiconductor.pdf
Description: SP6T RF Switch

PE42462 Product details

Description

The PE42462 is a HaRP™ technology-enhanced absorptive SP6T RF switch that supports a frequency range from 10 MHz to 8 GHz..

Features

High isolation: 35 dB @ 6 GHz.
Low insertion loss: 1.1 dB @ 6 GHz.
Fast switching time of 210 ns.
Power handling of 33 dBm CW.
Logic select (LS) pin provides maximum control logic flexibility.
Terminated all-off state mode.
Packaging.
24-lead 4 × 4 × 0.85 mm QFN.
