C30921E - (C309xxx) Silicon Avalanche Photodiodes

This page provides the datasheet information for the C30921E, a member of the C30902E (C309xxx) Silicon Avalanche Photodiodes family.

Datasheet Summary

Description

PerkinElmer Type C30902E avalanche photodiode utilizes a silicon detector chip fabricated with a double-diffused "reachthrough" structure.

This structure provides high responsivity between 400 and 1000 nm as well as extremely fast rise and fall times at all wavelengths.

Features

  • High Quantum Efficiency 77% Typical at 830 nm.
  • C30902S and C30921S in Geiger Mode: Single-Photon Detection Probability to 50% Low Dark-Count Rate at 5% Detection Probability - Typically 15,000/second at +22°C 350/second at -25°C Count Rates to 2 x 106/second.
  • Hermetically Sealed Package.
  • Low Noise at Room Temperature C30902E, C30921E - 2.3 x 10-13 A/Hz1/2 C30902S, C30921S - 1.1 x 10-13 A/Hz1/2.
  • High Responsivity - Internal Avalanche Gains in Excess o.

📥 Download Datasheet

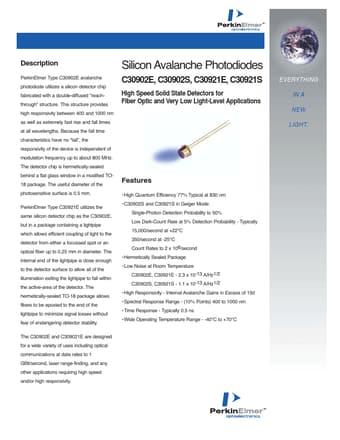

Datasheet preview – C30921E
