FX-4403 - High Output Xenon Flashlamp

Datasheet Summary

Description

The new FX-4400 Light Source from PerkinElmer Optoelectronics is a compact, high-output, long-life pulsed xenon flashlamp that offers exceptional arc stability, microsecond pulse durations and a high-intensity continuous line spectrum from the deep UV to the far IR.

Features

  • Up to 20x the output intensity of traditional xenon style lamps.
  • Exceptional arc stability.
  • Long Life.
  • Continuous spectrum UV-VIS-IR.
  • Collimated Output beam.
  • Ideal for use with Optical Lenses and Fiber Bundles.
  • Low optical noise.
  • Microsecond flash durations.
  • Various window materials (transmissions ranging from 160nm to 20 microns).
  • High repetition flash rates.
  • No Warm-up period required.
  • Compact size . w w w. p e r k i n e l m e r. c.

📥 Download Datasheet

Datasheet preview – FX-4403

Datasheet Details

Part number FX-4403
Manufacturer PerkinElmer Optoelectronics
File Size 57.28 KB
Description High Output Xenon Flashlamp
Datasheet download datasheet FX-4403 Datasheet
Additional preview pages of the FX-4403 datasheet.

📁 Similar Datasheet

  • FX-402 - Low Jitter VCSO Frequency Translator (Vectron International)
  • FX-410 - Digital Fiber Sensor (Panasonic)
  • FX-411 - Digital Fiber Sensor (Panasonic)
  • FX-412 - Digital Fiber Sensor (Panasonic)
  • FX-424 - Low Jitter Frequency Translator (Vectron International)
  • FX-427 - Low Jitter Frequency Translator (Vectron International)
  • FX-100 - Digital Fiber Sensor (SUNX)
  • FX-100-Z - Digital Fiber Sensor (Panasonic)
  • fx-100MS - (fx-xxxMS) User Manual (Casio)
  • FX-101 - Frequency Translator (Vectron)
Other Datasheets by PerkinElmer Optoelectronics
  • FX-4400 - High Output Xenon Flashlamp
  • FX-4401 - High Output Xenon Flashlamp
  • FX-4402 - High Output Xenon Flashlamp
  • FX-1160 - High Output/ Short Arc Xenon Flashlamp with Internal Reflector

Full PDF Text Transcription

Click to expand full text

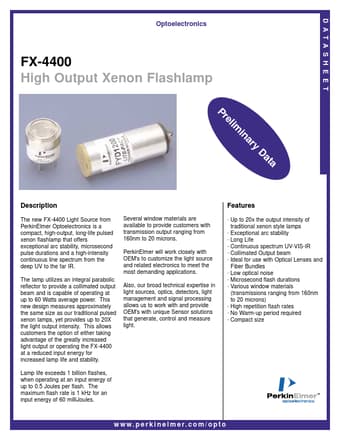

D A T A S H E E T Optoelectronics FX-4400 High Output Xenon Flashlamp e Pr a in lim ry D a at Description The new FX-4400 Light Source from PerkinElmer Optoelectronics is a compact, high-output, long-life pulsed xenon flashlamp that offers exceptional arc stability, microsecond pulse durations and a high-intensity continuous line spectrum from the deep UV to the far IR. The lamp utilizes an integral parabolic reflector to provide a collimated output beam and is capable of operating at up to 60 Watts average power. This new design measures approximately the same size as our traditional pulsed xenon lamps, yet provides up to 20X the light output intensity.
