FX-402, Low Jitter VCSO Frequency Translator

FX-402 Low Jitter Frequency Translator Previous Part Number FX-427 FX-402 .
The FX-402 is a precision quartz-based frequency translator used to translate 1 to 4 selected input clocks as low as 8 kHz to an integer multiple as h.

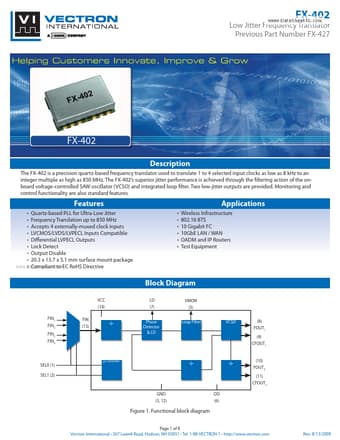

datasheet Preview Page 1 from Datasheet4u.com

FX-402_VectronInternational.pdf

FX-402 Datasheet Preview — Preview of FX-402 PDF

Datasheet Details

Part number:

FX-402

Manufacturer:

Vectron International

File Size:

497.28 KB

Description:

Low Jitter VCSO Frequency Translator

Features

* Features
* Quartz-based PLL for Ultra-Low Jitter
* Frequency Translation up to 850 MHz
* Accepts 4 externally-muxed clock inputs
* LVCMOS/LVDS/LVPECL Inputs Compatible
* Differential LVPECL Outputs
* Lock Detect
* Output Disable
* 20.

Applications

* Wireless Infrastructure 802.16 BTS 10 Gigabit FC 10GbE LAN / WAN OADM and IP Routers Test Equipment Block Diagram VCC (14) FIN1 FIN2 FIN3 FIN4 FIN (13) LD (7) Phase Detector & LD VMON (5) Loop Filter VCSO (8) FOUT1 (9) CFOUT1 ÷ μ Controller SEL0 (1) SEL1 (2) ÷ ÷ (10) FOUT2 (11) CFOUT2 GND (3
