FX-424 - Low Jitter Frequency Translator

FX-424 Description

www.DataSheet4U.com Preliminary Data Sheet FX-424 Low Jitter Frequency Translator .
The FX-424 is a precision quartz-based frequency translator used to translate an input frequency such as 8 kHz, 1.

FX-424 Features

* Quartz-based PLL for Ultra-Low Jitter
* Frequency Translation up to 850 MHz
* Accepts up to 4 ext. -muxed clock inputs
* CMOS / LVDS / LVPECL Inputs compatible
* Differential LVPECL or LVCMOS Output
* Lock Detect / Loss of Signal Alarms
* Out

FX-424 Applications

* Wireless Infrastructure
* 10 Gigabit FC
* 10GbE LAN / WAN
* OADM and IP Routers
* Test Equipment
* Military Communcations Figure 1. Functional Block Diagram Vectron International, 267 Lowell Road, Hudson, NH 03051 Page 1 of 8 Tel: 1-88-VECTRON-1

📥 Download Datasheet

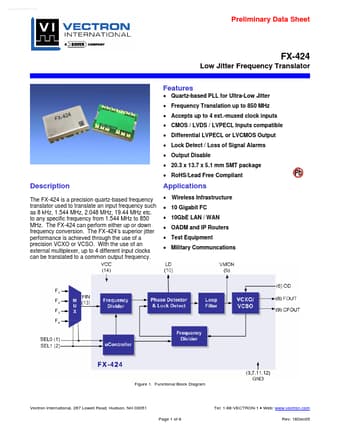

Preview of FX-424 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FX-424
Manufacturer
Vectron International
File Size
294.36 KB
Datasheet
FX-424_VectronInternational.pdf
Description
Low Jitter Frequency Translator
