FX-427 Low Jitter Frequency Translator

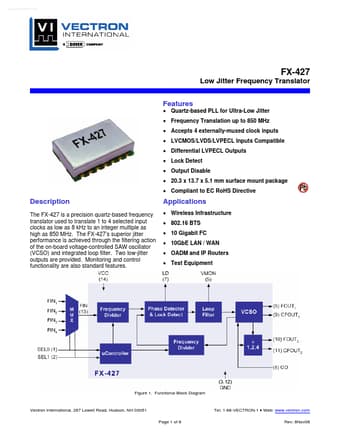

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com FX-427 Low Jitter Frequency Translator .
The FX-427 is a precision quartz-based frequency translator used to translate 1 to 4 selected input clocks as low as 8 kHz to an integer multiple as h.

📥 Download Datasheet

Preview of FX-427 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FX-427
Manufacturer
Vectron International
File Size
170.53 KB
Datasheet
FX-427_VectronInternational.pdf
Description
Low Jitter Frequency Translator

Features

* Quartz-based PLL for Ultra-Low Jitter
* Frequency Translation up to 850 MHz
* Accepts 4 externally-muxed clock inputs
* LVCMOS/LVDS/LVPECL Inputs Compatible
* Differential LVPECL Outputs
* Lock Detect
* Output Disable
* 20.3 x 13.7 x

Applications

* Wireless Infrastructure
* 802.16 BTS
* 10 Gigabit FC
* 10GbE LAN / WAN
* OADM and IP Routers
* Test Equipment Figure 1. Functional Block Diagram Vectron International, 267 Lowell Road, Hudson, NH 03051 Page 1 of 8 Tel: 1-88-VECTRON-1
* Web
