2N2369 Datasheet, transistor equivalent, Philips

PDF File Details

Part number: 2N2369

Manufacturer: Philips

File Size: 52.19KB

Download: 📄 Datasheet

Description: NPN switching transistor

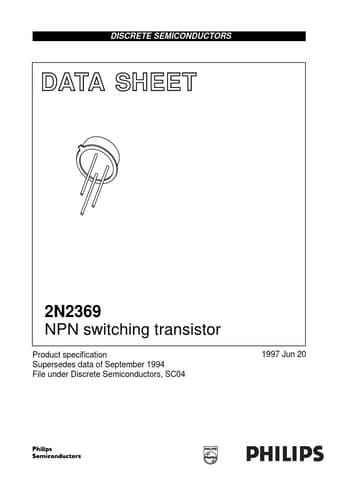

Datasheet Preview: 2N2369 📥 Download PDF (52.19KB)

2N2369 Features and benefits


* Low current (max. 200 mA)
* Low voltage (max. 15 V). APPLICATIONS
* High-speed switching
* VHF amplification. handbook, halfpage 1 2N2369 PINNING PIN 1.

2N2369 Application


* High-speed switching
* VHF amplification. handbook, halfpage 1 2N2369 PINNING PIN 1 2 3 emitter base collecto.

2N2369 Description

3 2 DESCRIPTION NPN switching transistor in a TO-18 metal package. 3 2 MAM264 1 Fig.1 Simplified outline (TO-18) and symbol. QUICK REFERENCE DATA SYMBOL VCBO VCEO IC Ptot hFE fT toff PARAMETER collector-base voltage collector-emitter voltage c.
