74ABT16821A - 20-bit bus-interface D-type flip-flop

Datasheet Summary

Description

The 74ABT16821A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high

Features

  • 20-bit positive-edge triggered register.
  • Multiple VCC and GND pins minimize switching noise.
  • Live insertion/extraction permitted.
  • Power-up reset.
  • Power-up 3-State.
  • 74ABTH16821A incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs.
  • Output capability: +64mA/-32mA.
  • Latch-up protection exceeds 500mA per JEDEC Std 17.
  • ESD protection exceeds 2000V per MIL STD 883.

📥 Download Datasheet

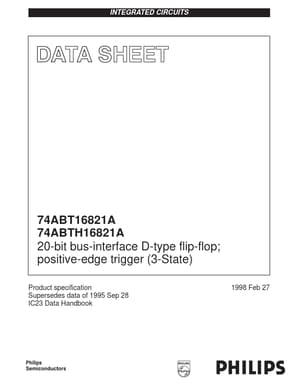

Datasheet preview – 74ABT16821A

Datasheet Details

Part number 74ABT16821A
Manufacturer Philips
File Size 80.52 KB
Description 20-bit bus-interface D-type flip-flop
Datasheet download datasheet 74ABT16821A Datasheet
Additional preview pages of the 74ABT16821A datasheet.

📁 Similar Datasheet

Other Datasheets by Philips

Full PDF Text Transcription

Click to expand full text
INTEGRATED CIRCUITS 74ABT16821A 74ABTH16821A 20-bit bus-interface D-type flip-flop; positive-edge trigger (3-State) Product specification Supersedes data of 1995 Sep 28 IC23 Data Handbook 1998 Feb 27 Philips Semiconductors Philips Semiconductors 20-bit bus-interface D-type flip-flop; positive-edge trigger (3-State) Product specification 74ABT16821A 74ABTH16821A FEATURES • 20-bit positive-edge triggered register • Multiple VCC and GND pins minimize switching noise • Live insertion/extraction permitted • Power-up reset • Power-up 3-State • 74ABTH16821A incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs • Output capability: +64mA/-32mA • Latch-up protection exceeds 500mA per JEDEC Std 17 • ESD protection exceeds 2000V per MIL
