74ABT16245B - 16-bit bus transceiver

Datasheet Summary

Description

The 74ABT16245B high-performance BiCMOS device combines low static and dynamic power dissipation wi

Features

  • 16-bit bidirectional bus interface.
  • Power-up 3-State.
  • Multiple VCC and GND pins minimize switching noise.
  • 3-State buffers.
  • Output capability: +64 mA/.
  • 32mA.
  • Latch.
  • up protection exceeds 500mA per JEDEC Std 17.
  • Live insertion/extraction permitted.
  • ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200V per Machine Model.
  • 74ABTH16245B incorporates bus hold data inputs which eliminate the need.

📥 Download Datasheet

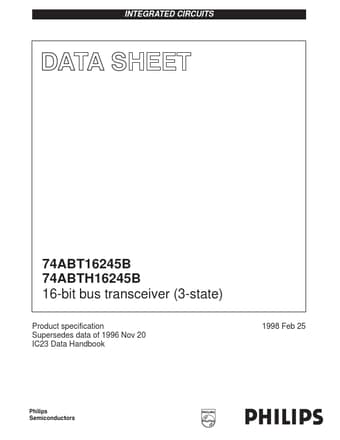

Datasheet preview – 74ABT16245B

Datasheet Details

Part number 74ABT16245B
Manufacturer Philips
File Size 79.84 KB
Description 16-bit bus transceiver
Datasheet download datasheet 74ABT16245B Datasheet
Additional preview pages of the 74ABT16245B datasheet.

📁 Similar Datasheet

Other Datasheets by Philips

Full PDF Text Transcription

Click to expand full text
INTEGRATED CIRCUITS 74ABT16245B 74ABTH16245B 16-bit bus transceiver (3-state) Product specification Supersedes data of 1996 Nov 20 IC23 Data Handbook 1998 Feb 25 Philips Semiconductors Philips Semiconductors 16-bit bus transceiver (3-State) Product specification 74ABT16245B 74ABTH16245B FEATURES • 16-bit bidirectional bus interface • Power-up 3-State • Multiple VCC and GND pins minimize switching noise • 3-State buffers • Output capability: +64 mA/–32mA • Latch–up protection exceeds 500mA per JEDEC Std 17 • Live insertion/extraction permitted • ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200V per Machine Model • 74ABTH16245B incorporates bus hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs • Bus-hold data inputs eliminat
