74HC40104 Datasheet - Philips

74HC40104 4-bit bidirectional universal shift register

The 74HC/HCT40104 are high-speed Si-gate CMOS devices and are pin compatible with the “40104” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT40104 are universal shift registers featuring parallel inputs, parallel outputs, shift-right and shift-left se.

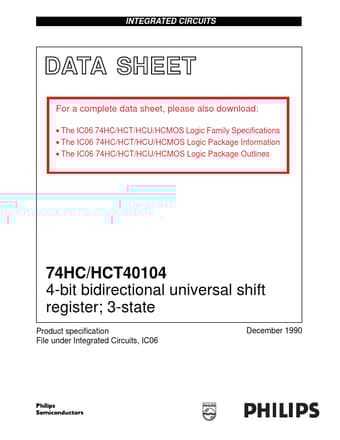

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Information The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines 74HC/HCT40104 4-bit bidirectional universal shift register; 3-state Product specification File under Integrated Circuits, IC06 December 1990 Philips Semiconductors 4-bit bidirectional universal shift register; 3-state Product.

74HC40104_PhilipsSemiconductors.pdf

Preview of 74HC40104 PDF
74HC40104 Datasheet Preview Page 2 74HC40104 Datasheet Preview Page 3

Datasheet Details

Part number:

74HC40104

Manufacturer:

Philips

File Size:

57.35 KB

Description:

4-bit bidirectional universal shift register.
