74HC4017

The 74HC4017 is Johnson decade counter designed by NXP.

Product Overview

NXP

74HC4017 Johnson decade counter by NXP - Datasheet Preview — Datasheet preview – 74HC4017

Datasheet Details

Part number	74HC4017
Manufacturer	NXP
File Size	182.84 KB
Description	Johnson decade counter
Datasheet	74HC4017-NXP.pdf

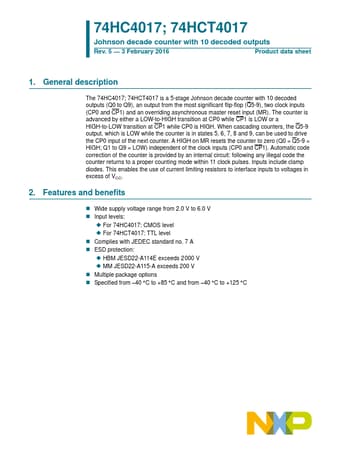

Additional preview pages of the 74HC4017 datasheet.

Product details

Description

The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR).

Features

Wide supply voltage range from 2.0 V to 6.0 V.
Input levels:.
For 74HC4017: CMOS level.
For 74HCT4017: TTL level.
Complies with JEDEC standard no. 7 A.
ESD protection:.
HBM JESD22-A114E exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V.
Multiple package options.
Specified from 40 C to +85 C and from 40 C to +125 C NXP Semiconductors 74HC4017; 74HCT4017 Johnson decade counter with 10 decoded outputs 3. Ordering information Table 1. Orderin.
