74HC4017BQ

Johnson decade counter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74HC4017BQ,115 IC DECADE COUNTER 10BIT 16DHVQFN DigiKey 856 1000 units
$0.32

74HC4017BQ Datasheet (305.30 KB)

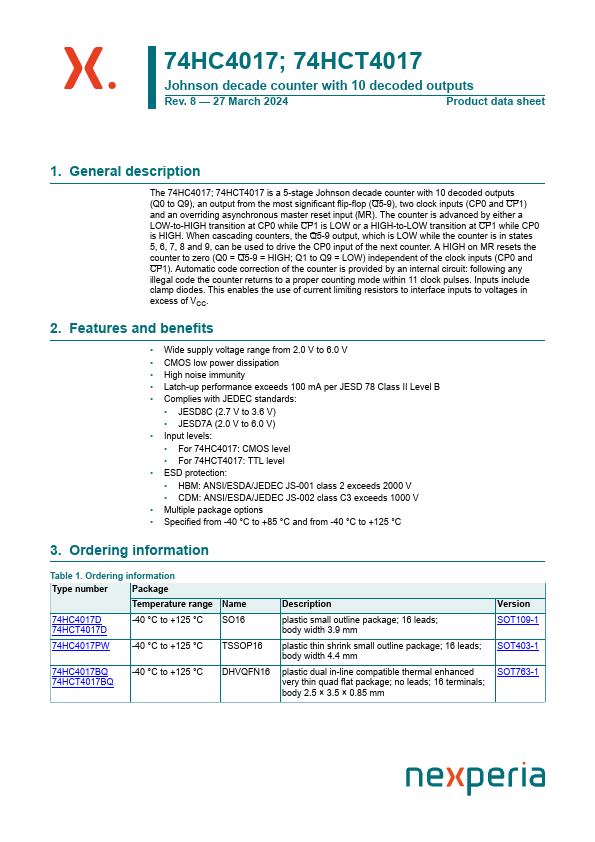

Preview of 74HC4017BQ PDF Datasheet

Datasheet Details

Part number:

74HC4017BQ

Manufacturer:

nexperia ↗

File Size:

305.30 KB

Description:

Johnson decade counter

74HC4017BQ Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HC4017BQ General Description

The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR). The counter is advanced by either a LOW-to-HIGH transition at C.

📁 Related Datasheet

74HC4017 - Johnson decade counter (NXP)
74HC4017; 74HCT4017 Johnson decade counter with 10 decoded outputs Rev. 5 — 3 February 2016 Product data sheet 1. General description The 74HC4017.

74HC4017 - Johnson decade counter (nexperia)
74HC4017; 74HCT4017 Johnson decade counter with 10 decoded outputs Rev. 7 — 10 May 2021 Product data sheet 1. General description The 74HC4017; 74.

74HC4017 - Decade Counter/Divider (Texas Instruments)
CD54HC4017, CD74HC4017 Data sheet acquired from Harris Semiconductor SCHS200D High-Speed CMOS Logic November 1997 - Revised October 2003 Decade Cou.

74HC4017-Q100 - Johnson decade counter (nexperia)
74HC4017-Q100; 74HCT4017-Q100 Johnson decade counter with 10 decoded outputs Rev. 2 — 1 July 2020 Product data sheet 1. General description The 7.

74HC4017D - Johnson decade counter (nexperia)
74HC4017; 74HCT4017 Johnson decade counter with 10 decoded outputs Rev. 7 — 10 May 2021 Product data sheet 1. General description The 74HC4017; 74.

74HC4017DB - Johnson decade counter (nexperia)
74HC4017; 74HCT4017 Johnson decade counter with 10 decoded outputs Rev. 7 — 10 May 2021 Product data sheet 1. General description The 74HC4017; 74.

TAGS

74HC4017BQ Johnson decade counter nexperia

Image Gallery

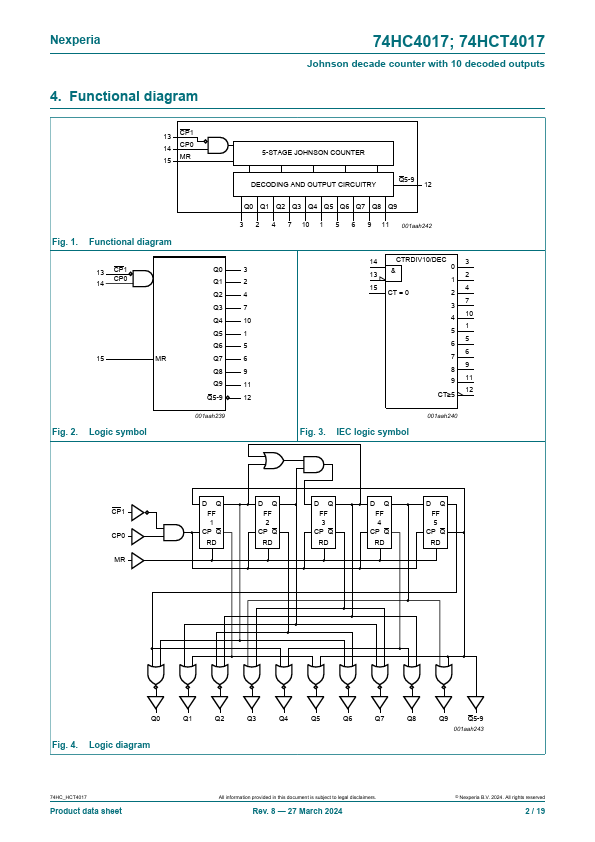

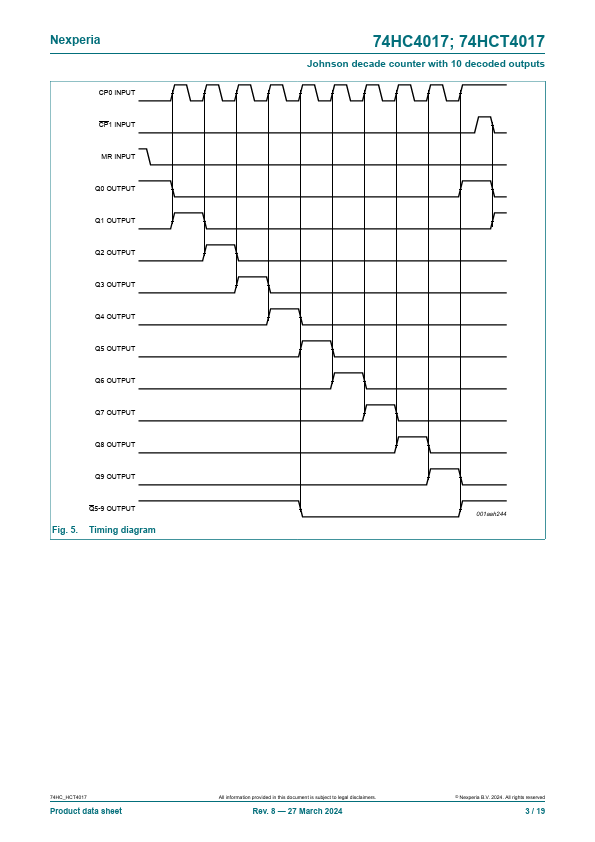

74HC4017BQ Datasheet Preview Page 2 74HC4017BQ Datasheet Preview Page 3
