74HC40103PW 8-bit synchronous binary down counter

The 74HC40103 is an 8-bit synchronous down counter. It has control inputs for enabling or disabling the clock (CP), for clearing the counter to its maximum count and for presetting the counter either synchronously or asynchronously. In normal operation, the counter is decremented by one count on eac.

74HC40103PW Features

* Cascadable

* Synchronous or asynchronous preset

* Low-power dissipation

* Complies with JEDEC standard no. 7A

* CMOS input levels

* ESD protection:

* HBM JESD22-A114F exceeds 2000 V

* MM JESD22-A115-A exceeds 200 V

* Multiple package options

* Specified from

74HC40103-nexperia.pdf

This datasheet PDF includes multiple part numbers: 74HC40103PW, 74HC40103. Please refer to the document for exact specifications by model.

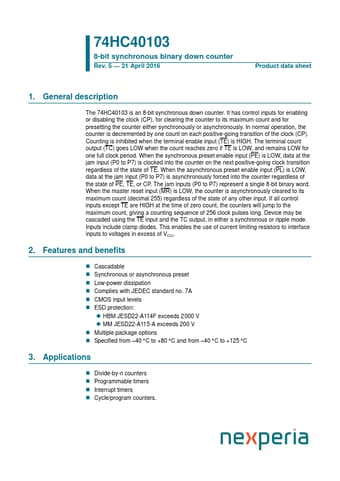

74HC40103PW Datasheet Preview Page 2 74HC40103PW Datasheet Preview Page 3
