74HC4017DB, 74HC4017 - Johnson decade counter

nexperia

74HC4017DB Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HC4017DB, 74HC4017. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	74HC4017DB, 74HC4017
Manufacturer	nexperia ↗
File Size	310.94 KB
Description	Johnson decade counter
Datasheet	74HC4017-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HC4017DB, 74HC4017. Please refer to the document for exact specifications by model.

74HC4017DB Product details

Description

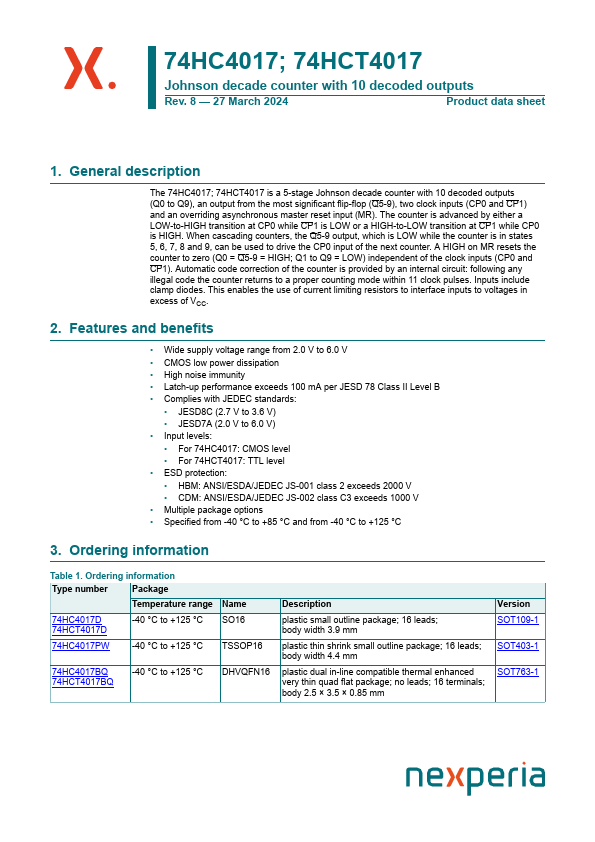

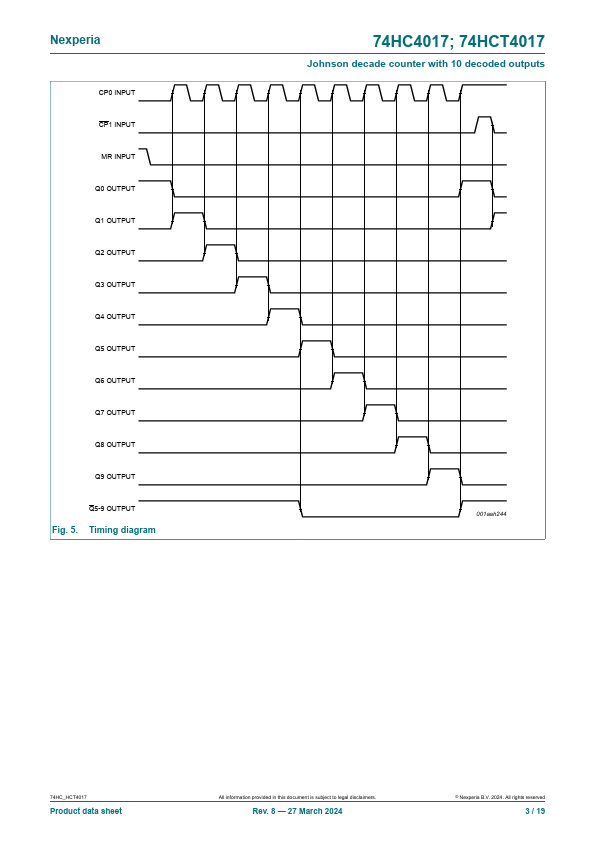

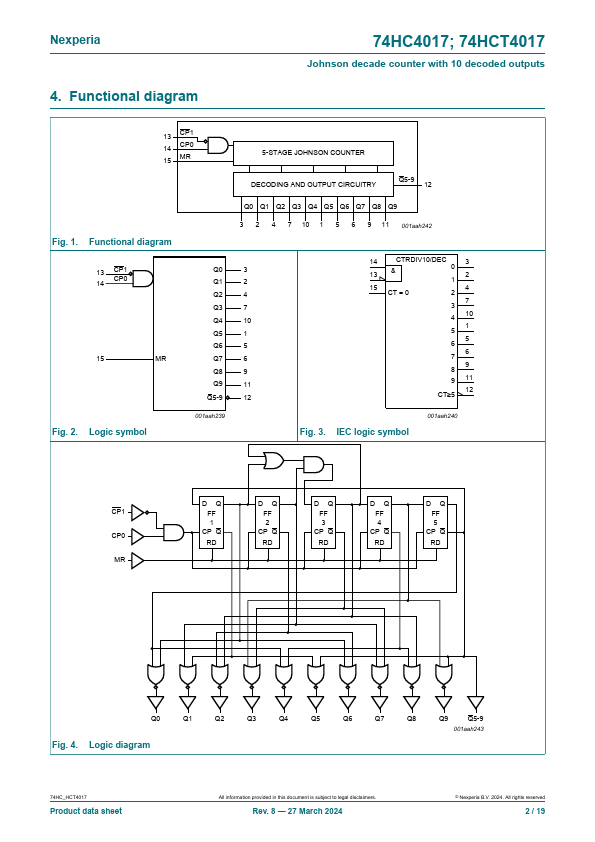

The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR).

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC4017: CMOS level.
For 74HCT4017: TTL level.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CD.
