TEA1610P - Zero-voltage-switching resonant converter controller

Product Overview

Philips

📥 Download Datasheet

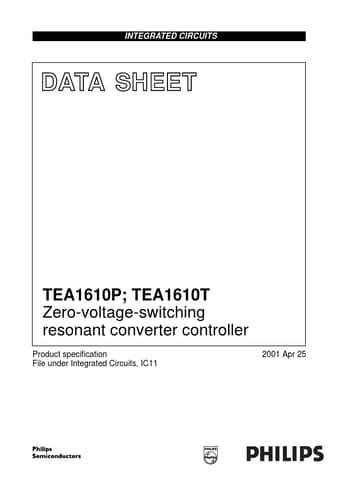

TEA1610P Zero-voltage-switching resonant converter controller by Philips - Datasheet Preview — Datasheet preview – TEA1610P

Datasheet Details

Part number	TEA1610P
Manufacturer	Philips
File Size	103.96 KB
Description	Zero-voltage-switching resonant converter controller
Datasheet	TEA1610P Datasheet
Additional preview pages of the TEA1610P datasheet.

Product details

Description

The TEA1610 is a monolithic integrated circuit implemented in a high-voltage DMOS process.

Features

Integrated high voltage level-shift function.
Integrated high voltage bootstrap diode.
Transconductance error amplifier for ultra high-ohmic regulation feedback.
Latched shut-down circuit for overcurrent and overvoltage protection.
Low start-up current (green function).
Adjustable minimum and maximum frequencies.
Adjustable dead time.
Undervoltage lockout.
