TEA1622P

Switched Mode Power Supply (SMPS) controller IC

TEA1622P Features

* s s s s s s s s s s s s s s Designed for general purpose supplies Integrated power switch: 12 Ω and 650 V Operates from universal AC mains supplies: 80 V to 276 V Adjustable frequency for flexible design RC oscillator for load insensitive regulation loop constant Valley switching for minimum switch-o

TEA1622P General Description

The TEA1622P is a Switched Mode Power Supply (SMPS) controller IC that operates directly from the rectified universal mains. It is implemented in the high voltage EZ-HV™ SOI process, combined with a low voltage BICMOS process. The device includes a high voltage power switch and a circuit for start-up.

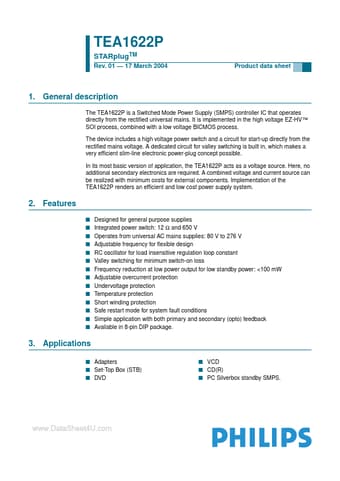

TEA1622P Datasheet (128.87 KB)

Preview of TEA1622P PDF

Datasheet Details

Part number:

TEA1622P

Manufacturer:

NXP ↗

File Size:

128.87 KB

Description:

Switched mode power supply (smps) controller ic.
