TEA1623P

STARplug switched mode power supply controller IC

TEA1623P Features

* s s s s s s s s s s s s s s Designed for general purpose supplies Integrated power switch: 6.5 Ω and 650 V Operates from universal AC mains supplies: 80 V to 276 V Adjustable frequency for flexible design RC oscillator for load insensitive regulation loop constant Valley switching for minimum switch-

TEA1623P General Description

The TEA1623P; TEA1623PH is a Switched Mode Power Supply (SMPS) controller IC that operates directly from the rectified universal mains. It is implemented in the high voltage EZ-HV™ SOI process, combined with a low voltage BICMOS process. The device includes a high voltage power switch and a circuit f.

TEA1623P Datasheet (340.57 KB)

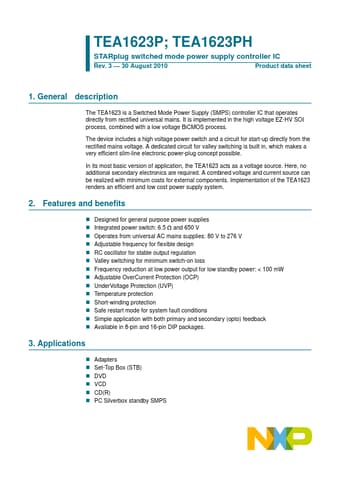

Preview of TEA1623P PDF

Datasheet Details

Part number:

TEA1623P

Manufacturer:

NXP ↗

File Size:

340.57 KB

Description:

Starplug switched mode power supply controller ic.
