PS2500 - Low-Power Direct Digital Modulation Frequency Synthesizer

Product Overview

📥 Download Datasheet

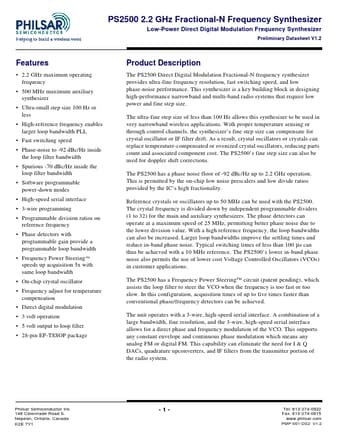

PS2500 Low-Power Direct Digital Modulation Frequency Synthesizer by Philsar - Datasheet Preview — Datasheet preview – PS2500

Datasheet Details

Part number	PS2500
Manufacturer	Philsar
File Size	217.04 KB
Description	Low-Power Direct Digital Modulation Frequency Synthesizer
Datasheet	PS2500 Datasheet
Additional preview pages of the PS2500 datasheet.

Product details

Description

The PS2500 Direct Digital Modulation Fractional-N frequency synthesizer provides ultra-fine frequency resolution, fast switching speed, and low phase-noise performance.

Features

2.2 GHz maximum operating frequency.
500 MHz maximum auxiliary synthesizer.
Ultra-small step size 100 Hz or less.
High-reference frequency enables larger loop bandwidth PLL.
Fast switching speed.
Phase-noise to -92 dBc/Hz inside the loop filter bandwidth.
Spurious -70 dBc/Hz inside the loop filter bandwidth.
Software programmable power-down modes.
High-speed serial interface.
3-wire programming.
P.
