PS2501L Datasheet, Series, CEL

PS2501L Features

  • Series
  • High isolation voltage (BV = 5 000 Vr.m.s.)
  • High collector to emitter voltage (VCEO = 80 V)
  • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)

PDF File Details

Part number:

PS2501L

Manufacturer:

CEL

File Size:

343.93kb

Download:

📄 Datasheet

Description:

High isolation voltage single transistor type multi photocoupler series. The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon

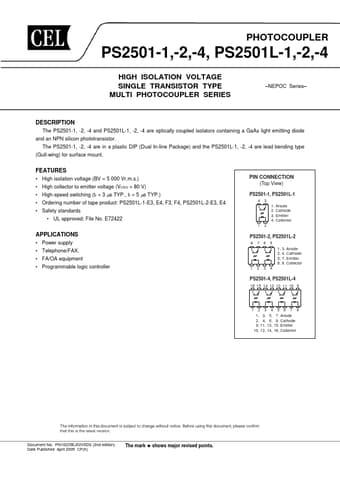

Datasheet Preview: PS2501L 📥 Download PDF (343.93kb)
Page 2 of PS2501L Page 3 of PS2501L

PS2501L Application

  • Applications
  • Power supply
  • Telephone/FAX.
  • FA/OA equipment
  • Programmable logic controller PS2501-2, PS2501L-2
