PS2501A-1, PHOTOCOUPLER

Data Sheet PS2501A-1, PS2501AL-1 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE R08DS0209EJ0100 Rev.1.00 Dec 25, 2020 .
The PS2501A-1 and PS2501AL-1 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor to realize an e.

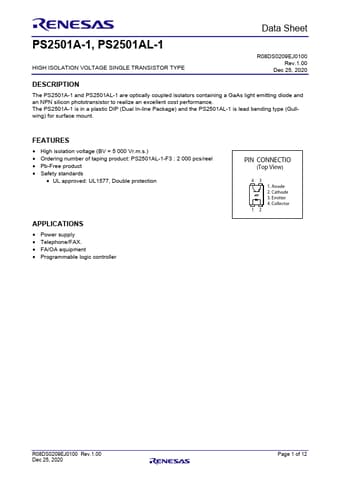

datasheet Preview Page 1 from Datasheet4u.com

PS2501A-1-Renesas.pdf

PS2501A-1 Datasheet Preview — Preview of PS2501A-1 PDF

Datasheet Details

Part number:

PS2501A-1

Manufacturer:

Renesas ↗

File Size:

5.11 MB

Description:

PHOTOCOUPLER

Features

* High isolation voltage (BV = 5 000 Vr. m. s. )
* Ordering number of taping product: PS2501AL-1-F3 : 2 000 pcs/reel
* Pb-Free product
* Safety standards

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller PIN CONNECTION (Top View) 43 1. Anode 2. Cathode 3. Emitter 4. Collector 12 R08DS0209EJ0100 Rev.1.00 Dec 25, 2020 Page 1 of 12 PS2501A-1, PS2501AL-1 PACKAGE DIMENSIONS (UNIT: mm) DIP Type PS2501A-1
