PS2501L-4 - Photocoupler

PS2501L-4 Description

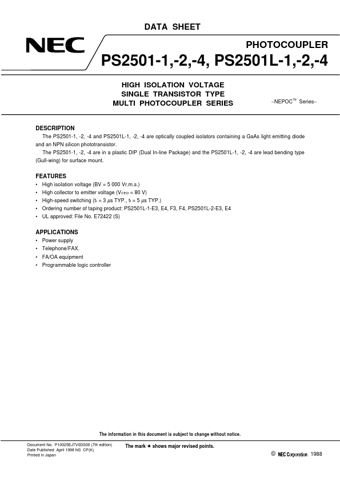

DATA SHEET PHOTOCOUPLER PS2501-1,-2,-4, PS2501L-1,-2,-4 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE MULTI PHOTOCOUPLER SERIES *NEPOC TM S.
The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.

PS2501L-4 Features

* High isolation voltage (BV = 5 000 Vr. m. s. )
* High collector to emitter voltage (VCEO = 80 V)
* High-speed switching (tr = 3 µs TYP. , tf = 5 µs TYP. )
* Ordering number of taping product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4
* UL approved: File No. E724

PS2501L-4 Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller The information in this document is subject to change without notice. Document No. P10025EJ7V0DS00 (7th edition) Date Published April 1998 NS CP(K) Printed in Japan The mark
