PS2502 - Photocoupler

Product Overview

NEC

📥 Download Datasheet

PS2502 Photocoupler by NEC - Datasheet Preview — Datasheet preview – PS2502

Datasheet Details

Part number	PS2502
Manufacturer	NEC
File Size	101.47 KB
Description	Photocoupler
Datasheet	PS2502 Datasheet
Additional preview pages of the PS2502 datasheet.

Product details

Description

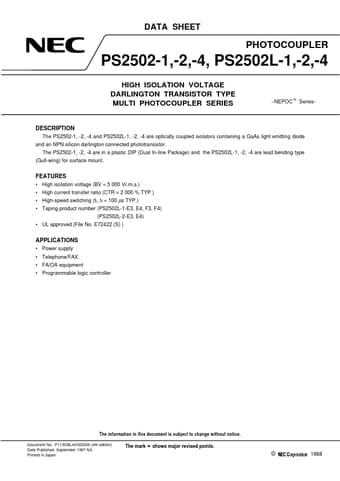

The PS2502-1, -2, -4 and PS2502L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor.

Features

High isolation voltage (BV = 5 000 Vr. m. s. ).
High current transfer ratio (CTR = 2 000 % TYP. ).
High-speed switching (tr, tf = 100 µs TYP. ).
Taping product number (PS2502L-1-E3, E4, F3, F4) (PS2502L-2-E3, E4).
UL approved (File No. E72422 (S) ).
