www.DataSheet4U.com PS2502-1X, PS2502-2X, PS2502-4X PS2502-1, PS2502-2, PS2502-4 HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS .
The PS2502-1, PS2502-2, PS2502-4 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photodarlingtons in s.

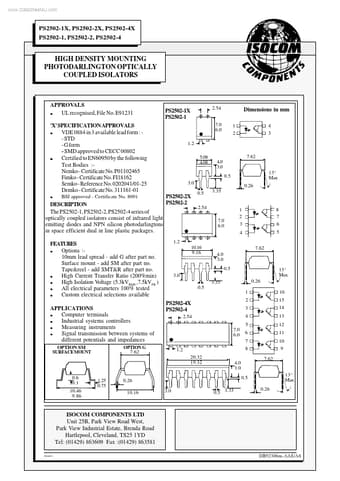

datasheet Preview Page 1 from Datasheet4u.com

PS2502-1_ISOCOMCOMPONENTS.pdf

PS2502-2X Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2502-2X, PS2502-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS2502-2X, PS2502-1

Manufacturer:

ISOCOM COMPONENTS

File Size:

101.63 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: PS2502-2X, PS2502-1.
Please refer to the document for exact specifications by model.

Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio (200%min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available APPLICA

Applications

* l Computer terminals l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances OPTION SM SURFACE MOUNT OPTION G PS2502-2X PS2502-2 1 2 3 4 8 7 6 5 PS2502-4X PS2502-4 2.54 7.62 0.6 0.1 10.46 9.86 1.25 0.75 0.26 10.16
