PS2502-1 Datasheet - CEL

PHOTOCOUPLER

PS2502-1 Features

* High isolation voltage (BV = 5 000 Vr.m.s.)

* High current transfer ratio (CTR = 2 000% TYP.)

* High-speed switching (tr, tf = 100 µs TYP.)

* Ordering number of tape product: PS2502L-1-F3: 2 000 pcs/reel

* Safety standards

* UL approved: No. E724

PS2502-1 General Description

The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor. The PS2502-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2502L-1, -4 are lead bending type (Gull- wing) for surface mount. .

PS2502-1 Datasheet (354.19 KB)

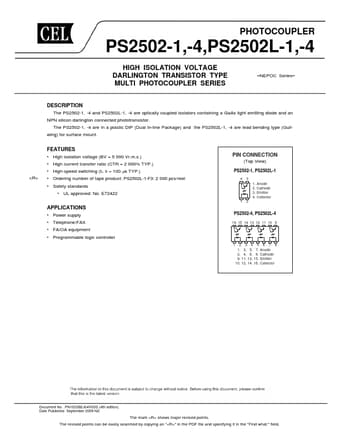

Preview of PS2502-1 PDF

Datasheet Details

Part number:

PS2502-1

Manufacturer:

CEL

File Size:

354.19 KB

Description:

Photocoupler.
PHOTOCOUPLER PS2502-1,-4,PS2502L-1,-4 HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR TYPE MULTI PHOTOCOUPLER SERIES NEPOC Series DE.
