PS2502-2 Datasheet - NEC

Photocoupler

PS2502-2 Features

* High isolation voltage (BV = 5 000 Vr.m.s.)

* High current transfer ratio (CTR = 2 000 % TYP.)

* High-speed switching (tr, tf = 100 µs TYP.)

* Taping product number (PS2502L-1-E3, E4, F3, F4) (PS2502L-2-E3, E4)

* UL approved (File No. E72422 (S) ) APPLICATI

PS2502-2 General Description

The PS2502-1, -2, -4 and PS2502L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor. The PS2502-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2502L-1, -2, -4 are lead bending type (Gull-wing) for .

PS2502-2 Datasheet (101.47 KB)

Preview of PS2502-2 PDF

Datasheet Details

Part number:

PS2502-2

Manufacturer:

NEC

File Size:

101.47 KB

Description:

Photocoupler.

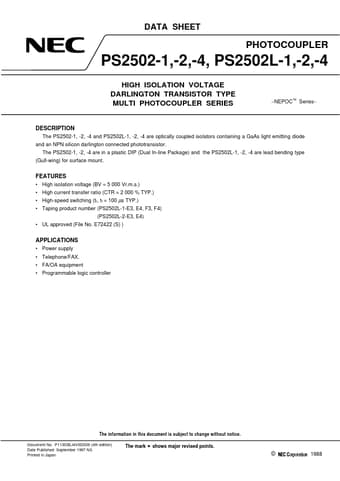

DATA SHEET PHOTOCOUPLER PS2502-1,-2,-4, PS2502L-1,-2,-4 HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR TYPE MULTI PHOTOCOUPLER SERIES NEPOC T.
